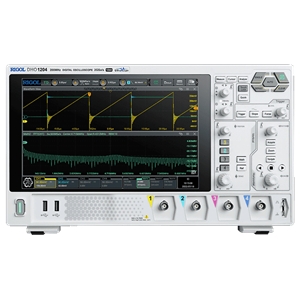

The DHO1072 from Rigol Technologies is a Oscilloscopes with Bandwidth 70 MHz, Capacitance 19 pF, Memory Depth 12.5 to 50 Mpts, Sample rate 500 MSa/s to 2 GSa/s. More details for DHO1072 can be seen below.
Product Specifications
Product Details
- Part NumberDHO1072
- ManufacturerRigol Technologies
- DescriptionDigital Storage Oscilloscope
General Parameters
- Acquisition ModeNormal, Peak Detect, Average, High Resolution, UltraAcquire
- ADC Resolution12 bits
- Bandwidth Limit20 MHz
- Ch to Ch Deskew±100 ns
- DC Current3.15 A (Fuse)
- DC Gain Accuracy±2%
- Dimensions358.14 x 214.72 x 120.62 mm (W x H x D)
- Display10.1 Inches capacitive multi-touch screen
- External Trigger ChannelYes
- FFTYes
- Input CouplingDC, AC, GND
- Input Impedance1 MOhms
- InterfaceUSB 3.0, HDMI
- Offset Range±1 to ±100 V
- Operating Temperature0 to 50 Degree C
- Peak Detect2 ns
- Power Consumption400 VA
- Rise Time5 ns
- Safety StandardsEN 61010-1:2019, EN 61010-031:2015, IEC 61010-1:2016, IEC 61010-2-030:2017, UL 61010-1:2012 R7, UL 61010-2-31:2017 R2, CAN/CSA-22.2 No. 61010-1-12:2017, CAN/CSA-22.2 No. 61010-2-30:2018, CAN/CSA-22.2 No. 61010-031-07:201
- Time Base Accuracy±5 ppm
- Time Base Range5 ns/div to 1 ks/div
- TriggerEdge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold
- TypeDigital Storage Oscilloscope
- Vertical Resolution12 bits
- Warranty3 Years + 18 Months
- Waveform Update Rates50000 to 150000 wfms/s
- Weight3.8 kg
- Bandwidth70 MHz
- Capacitance19 pF
- Memory Depth12.5 to 50 Mpts
- Sample rate500 MSa/s to 2 GSa/s
