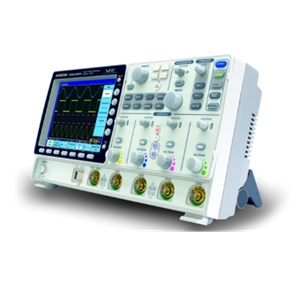

GDS‐3252
Oscilloscopes by Good Will Instrument Co., Ltd.
Download Datasheet
Request Quote
Note: Your Quotation Request will be directed to Good Will Instrument Co., Ltd..
The GDS‐3252 from Good Will Instrument Co., Ltd. is a Oscilloscopes with Bandwidth DC to 250 MHz, Sample rate 5 GSa/s, 2.5 GSa/s, 4 GSa/s. More details for GDS‐3252 can be seen below.
Product Specifications
Product Details
- Part NumberGDS‐3252
- ManufacturerGood Will Instrument Co., Ltd.
- DescriptionDigital Storage Oscilloscope
General Parameters
- Acquisition ModeNormal, Average, High Resolution, Peak Detect, Single
- ADC Resolution8 bits
- Bandwidth Limit20MHz/100MHz/200MHz/350MHz
- DC Gain Accuracy±3%
- Dimensions400 x 200 x 130 mm (W x D x H)
- Display8 Inches TFT LCD SVGA color display
- Display Resolution800 x 600
- External Trigger ChannelYes
- FFTYes
- Input CouplingDC, AC, GND
- Input Impedance1 MOhms, 75 Ohms
- InterfaceRS-232, USB 2.0
- Offset Range±1.25 to ±25 V
- Operating Temperature0 to 50 Degree C
- Peak Detect2 ns
- Power Consumption96 VA
- Rise Time1.4 ns
- Time Base Accuracy±20 ppm
- Time Base Range1 ns/div to 100 s/div
- TriggerEdge, Video, Glitch, Pulse
- TypeDigital Storage Oscilloscope
- Waveform Update Rates3500 wfms/s
- Weight4 kg
- BandwidthDC to 250 MHz
- Sample rate5 GSa/s, 2.5 GSa/s, 4 GSa/s
Technical Documents
- Datasheet
