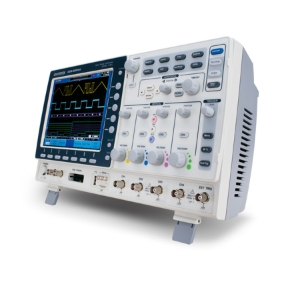

GDS‐2202A
Oscilloscopes by Good Will Instrument Co., Ltd.
Download Datasheet
Request Quote
Note: Your Quotation Request will be directed to Good Will Instrument Co., Ltd..
The GDS‐2202A from Good Will Instrument Co., Ltd. is a Oscilloscopes with Bandwidth DC to 200 MHz, Memory Depth 2 Mpts, 1 Mpts, Sample rate 2 GSa/s, 1 GSa/s. More details for GDS‐2202A can be seen below.
Product Specifications
Product Details
- Part NumberGDS‐2202A
- ManufacturerGood Will Instrument Co., Ltd.
- DescriptionDigital Storage Oscilloscope
General Parameters
- Acquisition ModeNormal, Average, Peak Detect, Single
- ADC Resolution8 bits
- Bandwidth Limit20 MHz
- DC Gain Accuracy3% X |Readout| + 0.1div + 1mV
- Dimensions380 x 220 x 145 mm
- Display8 Inches TFT LCD SVGA color display
- Display Resolution800 x 600
- External Trigger ChannelYes
- FFTYes
- Input CouplingDC, AC, GND
- Input Impedance1 MOhms
- InterfaceRS-232, USB 2.0, RJ-45
- Jitter500 ps
- Offset Range±0.5 to ±50 V
- Operating Temperature20 to 30 Degree C
- Peak Detect2 ns
- Rise Time1.75 ns
- Time Base Accuracy±20 ppm
- Time Base Range1 ns/div to 100 s/div
- TriggerEdge, Video, Glitch, Pulse
- TypeDigital Storage Oscilloscope
- Waveform Update Rates80000 wfms/s
- Weight4.2 kg
- BandwidthDC to 200 MHz
- Memory Depth2 Mpts, 1 Mpts
- Sample rate2 GSa/s, 1 GSa/s
Technical Documents
- Datasheet
