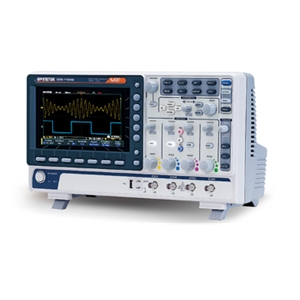

GDS‐1074B
Oscilloscopes by Good Will Instrument Co., Ltd.
Download Datasheet
Request Quote
Note: Your Quotation Request will be directed to Good Will Instrument Co., Ltd..
The GDS‐1074B from Good Will Instrument Co., Ltd. is a Oscilloscopes with Bandwidth DC to 70 MHz, Memory Depth 10 Mpts, Sample rate 1 GSa/s. More details for GDS‐1074B can be seen below.
Product Specifications
Product Details
- Part NumberGDS‐1074B
- ManufacturerGood Will Instrument Co., Ltd.
- DescriptionDigital Storage Oscilloscope
General Parameters
- Acquisition ModeNormal, Average, Peak Detect, Single
- ADC Resolution8 bits
- Bandwidth Limit20 MHz
- DC Gain Accuracy±3%
- Dimensions384 x 208 x 127.3 mm
- Display7 Inches TFT WVGA color display
- Display Resolution800 × 480
- FFTYes
- Input CouplingDC, AC, GND
- Input Impedance1 MOhms
- InterfaceRJ‐45, USB 2.0
- Jitterup to 10 ms
- Offset Range1.25 to 125V
- Operating Temperature0 to 50 Degree C
- Peak Detect2 ns
- Rise Time5 ns
- Time Base Accuracy±50 ppm
- Time Base Range5 ns/div to 100 s/div
- TriggerEdge, Video, Glitch, Pulse
- TypeDigital Storage Oscilloscope
- Waveform Update Rates50000 wfms/s
- Weight2.8 kg
- BandwidthDC to 70 MHz
- Memory Depth10 Mpts
- Sample rate1 GSa/s
Technical Documents
- Datasheet
