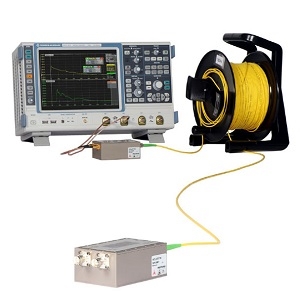

The MOL25T from HV Technologies is a Fiber Optic Link with Dynamic Range 65 dB, Fiber Length 1 km, Frequency DC to 25 MHz, Input Voltage 250 V, P1dB 0 dBm. More details for MOL25T can be seen below.
Product Specifications
Product Details
- Part NumberMOL25T
- ManufacturerHV Technologies
- DescriptionOptical transmission link
General Parameters
- Bits12-bit
- Channels2 Channels
- ConnectorsSMA, SMA - Female, BNC, BNC -Female, FC/APC
- Dimensions99 x 64 x 41 mm (L x W x H)(RX), 40 x 172 x 84 mm (2U)(RX), 113 x 64 x 41 mm (L x W x H)(TX)
- Gain flatness± 0.5 dB
- Impedance50 Ohms
- Input Impedance1 MOhms
- InterfaceMini-USB
- Operating Temperature-10 to 55 Degree C
- Output Impedance50 Ohms
- Sampling Rate75 MS/s
- TypeDigital
- Weight380 g(RX), 240 g(RX), 380 g(TX)
- Dynamic Range65 dB
- Fiber Length1 km
- FrequencyDC to 25 MHz
- Input Voltage250 V
- P1dB0 dBm
Technical Documents
- Datasheet
