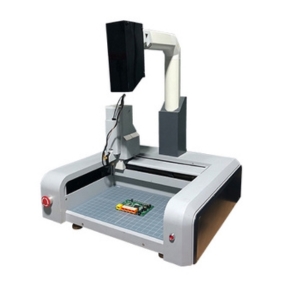

The RCE-25 from ERETEC INC. is an EMC Scanner that can measure frequencies ranging from 0.1 to 6000 MHz. It has a scan area of 250 x 175 x 80 mm and a scan table that measures 700 x 700 x 820 mm. This scanner has an E-field with an electrode surface of 4 x 4 mm and 10 mm & 2 mm H-field probes. It supports multiple area selections, including rectangle, polygon, and exclusive zones, and has a manually adjustable scan orientation from 0° to 360°. This scanner has a fully automated 3-axis motorized XYZ axis that supports simultaneous control of the three axes.
The RCE-25 has a camera with 1300 K valid pixels and supports 16x optical zoom with auto focus. It supports various capabilities, including real-time probe tracking via an image window, camera-assisted image processing, and easy-to-use reference height, surface detection, and user-defined height measurements. This scanner is ideal for R&D divisions and EMC debug labs as a countermeasure for PCB EMC.
