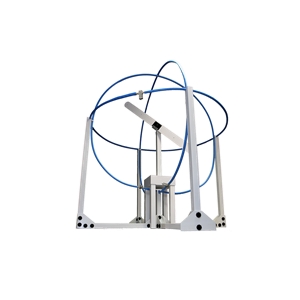

The RF-300 from Narda Safety Test Solutions is a Loop Antenna System that operates from 9 kHz to 30 MHz. It is a 3-axis system that can be combined with any EMI receiver for testing luminaries as per the EN 55015 (CISPR-15) standard. This antenna system consists of a switching unit. It measures 2 m in diameter and is ideal for EMC testing applications.
Product Specifications
Product Details
- Part NumberRF-300
- ManufacturerNarda Safety Test Solutions
- Description3-Axis Loop Antenna System from 9 kHz to 30 MHz
General Parameters
- Frequency9 kHz to 30 MHz
- TypeLoop
- DirectionalityOmni-Directional
- PolarizationHorizontal, Vertical
- Impedance50 Ohms
- EMC StandardsIEC 61000-4-39
- Cable Type1/5/10 m (RG316U)
- Input Port ConfigurationCoaxial
- MountingTripod Mount, Mast Mount
- MaterialAluminium
- ApplicationsEMC/ EMI Testing, Radiated Emissions, Radiated Immunity Testing
- Dimensions2 mm loop diameter
- ConnectorsN Type, N Type - Female
- RoHSYes
