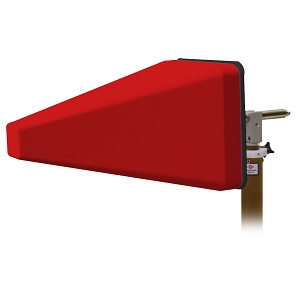

MAX-9

EMC Antenna by Frankonia Germany EMC Solutions GmbH (17 more products)
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Frankonia Germany EMC Solutions GmbH.

The MAX-9 from Frankonia Germany EMC Solutions GmbH is a EMC Antenna with Frequency 600 MHz to 10.5 GHz, Gain 10.3 dBi, Input Power 150 to 300 W, Vertica BW 46 to 48 Degrees. More details for MAX-9 can be seen below.

Product Specifications

Product Details

  • Part Number :
    MAX-9
  • Manufacturer :
    Frankonia Germany EMC Solutions GmbH
  • Description :
    Stacked Log Periodic Antenna from 600 MHz to 10.5 GHz

General Parameters

  • Frequency :
    600 MHz to 10.5 GHz
  • Type :
    Log Periodic
  • Directionality :
    Directional
  • Gain :
    10.3 dBi
  • Input Power :
    150 to 300 W
  • VSWR :
    1.50:1
  • Front to Back Ratio :
    25 dB
  • Vertica BW :
    46 to 48 Degrees
  • Cross Polarization :
    30 dB
  • Impedance :
    50 Ohms
  • Mounting :
    Pole Mount
  • Dimensions :
    460 (+215) x 270 x 270 mm
  • Connectors :
    N Type, N Type - Female
  • Weight :
    3.7 kg
