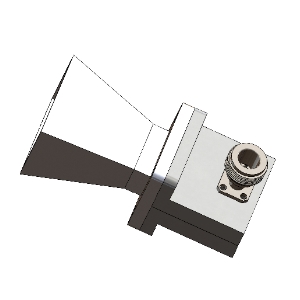

HS-075-UBR-10-NF
EMC Antenna by Fei Teng Wireless Technology
Request Quote
Note: Your Quotation Request will be directed to Fei Teng Wireless Technology.
The HS-075-UBR-10-NF from Fei Teng Wireless Technology is a EMC Antenna with Frequency 10 to 15 GHz, Gain 10 dB, Input Power 300 W, Horizontal BW 54 Degree, Vertica BW 54 Degree. More details for HS-075-UBR-10-NF can be seen below.
Product Specifications
Product Details
- Part NumberHS-075-UBR-10-NF
- ManufacturerFei Teng Wireless Technology
- DescriptionWR75 Standard Gain Horn Antenna, 10 to 15 GHz, 10 dbi gain, UBR Flange, N-Female connector
General Parameters
- Frequency10 to 15 GHz
- TypeHorn
- DirectionalityDirectional
- Gain10 dB
- PolarizationVertical, Horizontal
- Input Power300 W
- VSWR1.25:1
- Horizontal BW54 Degree
- Vertica BW54 Degree
- MaterialAluminium
- ApplicationsEMI/EMC Testing, Antenna Gain Measurements
- Dimensions46.5 x 39 x 86 mm
- ConnectorsN Type, N Type - Female
- WaveguideWR-75
- Weight0.12 Kg
- Note :Flange : UBR120/ M3922/70-004, -005
