The AS-03 from Narda Safety Solutions is an EMC Antenna Set that operates from 30 MHz to 6 GHz. It consists of three antennas - the BC-01 biconical dipole, LP-02, and LP-03 log-periodic dipole array. This antenna set provides a gain of -15 to 6.5 dBi and has antenna factors ranging from 8 to 42 dB/m. It can handle a maximum input power of 100 W.

The AS-03 can be used with any receiver or spectrum analyzer and has a tripod adapter that facilitates a simple transition between vertical and horizontal polarization, making it convenient to adjust the orientation as needed. It is available in an enclosure that measures 65 x 65 x 137 cm (BC-01), 70 x 10 x 86 cm (LP-02) & 32.5 x 8.1 x 18.7 cm (LP-03) and has N-type male or female connectors.

Product Specifications

Product Details

  • Part Number
    AS-03
  • Manufacturer
    Narda Safety Test Solutions
  • Description
    EMC Antenna Set from 30 MHz to 6 GHz

General Parameters

  • Frequency
    30 MHz to 6 GHz
  • Antennas Types
    Biconical Antenna, Log Periodic Antenna
  • Number of Antenna
    3 Antennas

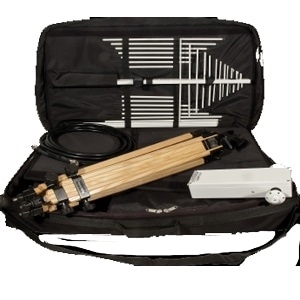

  • Kit Content
    Log Periodic Antenna, Biconical Antenna, 5 Meter N Type Cable, Antenna Mounting Adapter, Wooden Tripod, Carrying Case
  • Polarization
    Verical, Horizontal
  • Biconical Antenna
    30 to 200 MHz
  • Log Periodic Antenna
    200 MHz to 3 GHz, 800 MHz to 6 GHz
  • Cable Length
    5 m
  • Input Power
    100 W
  • Mounting
    Tripod
  • Impedance
    50 Ohms
  • Dimensions
    65 x 65 x 137 cm (BC-01), 70 x 10 x 86 cm (LP-02), 32.5 x 8.1 x 18.7 cm (LP-03)
  • Connectors
    N Type - Female, N Type - Male
  • Applications
    Test and Measurement, EMI Testing, EMC Testing
  • Weight
    1.8 kg (BC-01), 1.1 kg (LP-02), 0.25 kg (LP-03)
