EMC Antenna Kit by Com-Power Corporation (4 more products)
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Com-Power Corporation.

The ANK-318 from Com-Power is a Portable Antenna Kit designed for compliance testing and EMI troubleshooting from 30 MHz to 18 GHz. It includes the necessary antennas, preamplifiers and measurement cables for pre-compliance or qualification-level radiated emissions. This kit also includes two Comb Generators for test site verifications and a near-field probe set for troubleshooting EMI problems. It comes with a collapsible biconical antenna for low-frequency testing, a compact log periodic antenna for mid-frequency testing, and a double ridge horn antenna for high-frequency testing. The antennas, preamplifiers and measurement cables are each individually calibrated with NIST traceability.

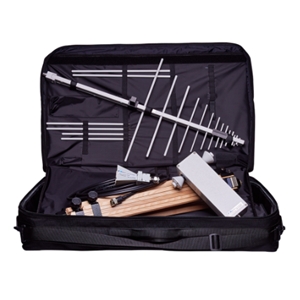

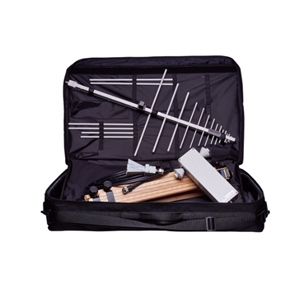

The ANK-318 components are organized in a robust carrying case with wheels, ensuring convenient transportation. It is available in an enclosure that measures 69.9 x 71.1 x 34.9 cm and weighs 30.8 Kg. This antenna kit is available with the optional AT-812 antenna tripod for antenna mounting.

Product Specifications

Product Details

  • Part Number :
  • Manufacturer :
    Com-Power Corporation
  • Description :
    Antenna Kit for EMI Testing from 30 MHz to 18 GHz

General Parameters

  • Frequency :
    30 MHz to 18 GHz
  • Antennas Types :
    Biconical Antenna, Log Periodic Antenna, Double Ridge Horn Antenna
  • Number of Antenna :
    3 Antennas
  • Kit Content :
    Biconical Antenna, Log Periodic Antenna, Double Ridge Horn Antenna, Preamplifier, Measurement Cable Set (1 meter coaxial cable Type N Male), (1 meter coaxial cable BNC Male), (10 meter coaxial cable N Type Male), Comb Generator, Near Field Probe Set, Compartmentalized Carrying Case
  • Biconical Antenna :
    30 to 300 MHz
  • Double Ridge Horn Antenna :
    1 to 18 GHz
  • Log Periodic Antenna :
    300 MHz to 1 GHz
  • Cable Connector :
    N Type, N Type - Male, BNC, BNC - Male
  • Cable Length :
    1 m, 10 m
  • Mounting :
    Tripod (Optional)
  • Dimensions :
    27.5 x 28 x 13.75 inches
  • Connectors :
    N Type, N Type - Male, BNC, BNC - Male
  • Warranty :
    3 Year
  • Applications :
    Test and Measurement, EMI Testing, EMC Testing
  • Weight :
    30.8 Kg
  • Note :
    AT-812 Antenna Tripod, ATC-812 Antenna Tripod w/Carrying Case
