Comb Generator by TEKBOX Digital Solutions (2 more products)
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to TEKBOX Digital Solutions.

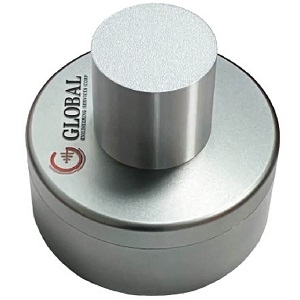

The TBCG3-CN from Tekbox Digital Solutions is a Comb Generator designed for verification of conducted emission test setups. This comb generator has a specified bandwidth of 1.5 GHz and is a useful tool to validate correct operation of the LISN, correct set-up and correct configuration of the spectrum analyzer. It has a rotary switch that provides the option of choosing from five fixed comb frequencies (from 100 kHz to 10 MHz), along with an external excitation input, spanning a frequency range of 5 kHz to 300 MHz. The device generates comb spectrums with a flatness of 8 dB, an output power of 66 dBμV (@10 MHz) and has a frequency stability of 50 ppm.

The TBCG3-CN is powered by four AA NiMH batteries, consumes 70 mA of current and includes an external charger. It is available in a housing that measures 180 (Dia.) x 60 (H) with SMA-female (input) and N-type (female) output connector.

Product Specifications

Product Details

  • Part Number :
  • Manufacturer :
    TEKBOX Digital Solutions
  • Description :
    Comb Generator from 100 kHz to 10 MHz for Conducted Emission Testing

General Parameters

  • Frequency :
    100 kHz, 500 kHz, 1 MHz, 5 MHz, 10 MHz (Fixed) and 5 kHz to 300 MHz ( External)
  • Test Type :
  • Impedance :
    50 Ohms
  • Input Connector :
    SMA - Female
  • Operating Temperature :
    -20 to 45 Degree C
