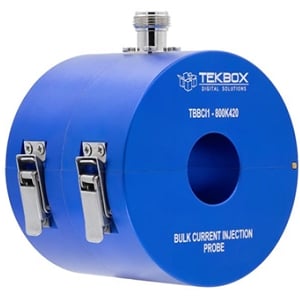

The TBBCI1-800K420 from TEKBOX Digital Solutions is a Bulk Current Injection Probe designed primarily for conducted immunity testing of automotive products in the frequency range of 1 MHz to 400 MHz. It has an insertion loss of 5 dB compliant with ISO 11452-4; IEC / EN 61000-4-6 specification, and a typical transfer impedance of 29 dB Ohm. This probe is capable of injecting severity levels I (60 mA), II (100 mA), III (150 mA), IV (200 mA), and customer-specific severity level V up to 350 mA. It has an aperture diameter of 27 mm, an outer diameter of 92 mm and a height of 76 mm, and an N female connector. It is ideal for RF current monitoring applications.
