10m Compliant Semi-Anechoic Chamber

Anechoic Chamber by TDK RF SOLUTIONS INC. (3 more products)
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to TDK RF SOLUTIONS INC..

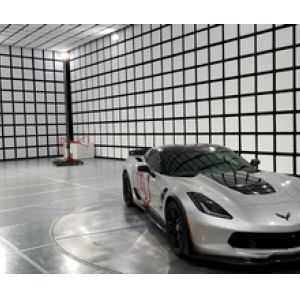

The 10 m Test Range Semi-Anechoic Chamber from TDK Corporation has a frequency range from 30 MHz to 40 GHz (EMI) and 26 MHz to 19 GHz (EMS). It has been designed to perform radiated emission and immunity measurements of RF signals over a distance of up to 10 m. This chamber is fully compliant with ANSI C63.4, EN 50147-2, and CISPR 22 standards. It is lined with Ferrite tiles and IP-090 series hollow-taper, wedge-shaped, fully-matched absorbers to ensure a wide operating frequency range. This anechoic chamber also includes white end caps to greatly improve the illumination levels inside the chamber. By positioning TDF ferrite tile floor panels and IP-045C absorbers between the transmit antenna and EUT (equipment under test), this semi-anechoic chamber can be used to perform radiated immunity measurements in full compliance with IEC 1000-4-3 standard from 26 MHz to 18 GHz.

This semi-anechoic chamber ensures field uniformity of over 75% of the surface (12 of the 16 points) of a vertical plane of 1.5 x 1.5 x 0.8 m from the ground. This chamber measures 18.0 x 12.0 x 8.4 m.

Product Specifications

Product Details

  • Part Number :
    10m Compliant Semi-Anechoic Chamber
  • Manufacturer :
    TDK RF SOLUTIONS INC.
  • Description :
    10 m Test Range Semi-Anechoic Chamber from 30 MHz to 40 GHz

General Parameters

  • Type :
    Semi Anechoic
  • Test Distance :
    10 m
  • Frequency :
    26 MHz and 18 GHz
  • EMC Standards :
    ANSI C63.4, EN 50147-2, CISPR 22, IEC 1000-4-3
  • Radiated Emissions Compliance :
    ANSI C63.4, EN 50147-2, CISPR 22
  • Radiated Immunity Compliance :
    Full compliance with IEC 1000-4-3
  • Absorber :
    Fully lined ferrite and fully lined IP-090 series absorber
  • Design :
    Square
  • External Dimensions :
    18.0 m long x 12.0 m wide x 8.4 m high (59' L x 39'-4" W x 27'-6" H)
