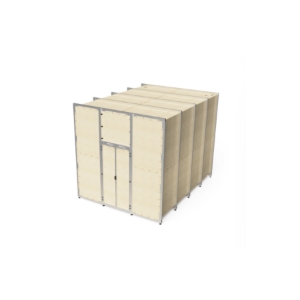

AC1224-360-4
Anechoic Chamber by mmWave Test Solutions
Request Quote
Note: Your Quotation Request will be directed to mmWave Test Solutions.
The AC1224-360-4 from mmWave Test Solutions is a Anechoic Chamber with Frequency 2 to 110 GHz. More details for AC1224-360-4 can be seen below.
Product Specifications
Product Details
- Part NumberAC1224-360-4
- ManufacturermmWave Test Solutions
- DescriptionPanel-based modular test chambers 2 to 110 GHz
General Parameters
- Test Distance3 m, 5 m, 10 m
- Frequency2 to 110 GHz
- AbsorberPyramid
- Application Industry5G, Radar, Backhaul, Wireless Access, Tests & Measurements
- Shielded Panel TypeModules
- Door/Gate2 Door
- Internal Dimensions334 x 334 x 458 cm(W x H x L), 300 x 300 x 421 cm(W x H x L)
- External Dimensions382 x 389 x 494 cm(W x H x L)
- Note :Reflection loss : 25 to 52 dB
