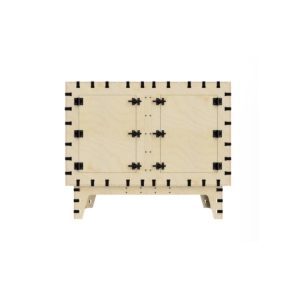

AC1120-180
Anechoic Chamber by mmWave Test Solutions
Request Quote
Note: Your Quotation Request will be directed to mmWave Test Solutions.
The AC1120-180 from mmWave Test Solutions is a Anechoic Chamber with Frequency 2 to 130 GHz. More details for AC1120-180 can be seen below.
Product Specifications
Product Details
- Part NumberAC1120-180
- ManufacturermmWave Test Solutions
- DescriptionModular anechoic chamber for radar, and 5G NR
General Parameters
- Test Distance3 m, 5 m, 10 m
- Frequency2 to 130 GHz
- Field Uniformity Area135 cm(Far-field distance (depends on positioner DUT arm depth)
- AbsorberPyramid
- Application Industry5G, Radar, Backhaul, Wireless Access, Tests & Measurements
- Shielded Panel TypeModules
- Door/Gate2 Door
- Internal Dimensions89 x 89 x 157 cm(W x H x L)
- External Dimensions115 x 115 x 183 cm(W x H x L)
- Note :Reflection loss : 25 to 50 dB
