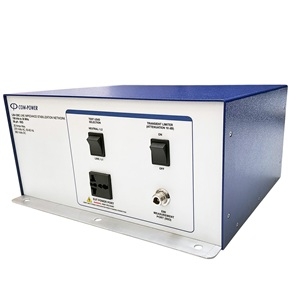

The LIN-120C from COM-POWER is a Line Impedance Stabilization Network (LISN) with a frequency range from 150 kHz to 30 MHz. It has an AMN impedance of 50 ohms, 50 microhenries (CISPR), 50 microhenries (ANSI), and an insertion loss of less than 1 dB with an isolation of more than 40 dB. This LISN has a current rating of 20 A (RMS) & 14 A (DC) and a voltage rating of 270 V (AC) & 380 V (DC). Its EUT power port is fitted with a universal, multi-configuration receptacle, which accommodates almost any EUT plug without the need for adapters, and the power input port is fitted with a standard IEC C20 receptacle.

The LIN-120C is equipped with a built-in transient limiter/10 dB Attenuator with an ON/OFF (bypass) switch to protect the RF input of the measuring instrument from potentially damaging voltage transients. The transient limiter also reduces the possibility of overload by incorporating two 5 dB attenuation/impedance matching pads, in addition to its low-pass and high-pass filters, which further attenuate out-of-band emissions. It is fully compliant with CISPR 16-1-2 and ANSI C63.4 standards. This LISN is available in a benchtop enclosure that measures 16.8 x 36.3 x 33 cm.
